Wire Drawing dies
Wire drawing molds are widely used, such as electronic devices, radar, television, instruments and aerospace and other high-precision wire, as well as commonly used tungsten wire, molybdenum wire, stainless steel wire. Wire cable wire and all kinds of alloy wire are drawn by diamond drawing die. The diamond drawing die has extremely strong wear resistance and long service life because of the use of natural diamond as raw material.
Grade Application
| Grade | Physical and mechanical properties | Applications recommended | |||
| Density | Hardness | TRS | |||
| g/cm³ | HRA | HV30 | N/mm² | ||
| YG3X | 15.0 | 91.5 | 1800 | 1300 | With very good wear resistant properties,it is used for making small drawing dies. |
| YG6 | 14.90 | 89.5 | 1750 | 1670 | With good wear resistant properties,it is used for making small and medium size drawing dies. |
| YG8 | 14.85 | 89 | 1500 | 1840 | With good toughness and adequate wear resistance,it is mainly used for making drawing dies for drawing wires and rods. |
| YG11 | 14.3 | 87 | 1250 | 1910 | With good strength and toughness,it is mainly used for drawing dies for drawing tubes and rods. |
| YG15 | 14.0 | 87 | 1150 | 2220 | With good strength and toughness,it its mainly used for making drawing dies for drawing big tubes,rods and strips. |
Tolerances of Dimensions
| Dim.of d1 | ≤0.5 | >0.5-2.0 | >2.0-3.2 | >3.2-6.0 | >6.0-12 | >12-25.0 | >25.0-up |
| Tolerances | 0
-0.01 |
0
-0.015 |
0
-0.02 |
-0.01
-0.03 |
-0.01
-0.04 |
-0.02
-0.06 |
-0.03 -0.10 |
| Range of diameters | Dimensions | ||||||
| For non-ferrous metals | For ferrous metals | Nib | Case | ||||
|
Type |
Range of d1 | Type | Range of d1 | d2 | h2 | d3 |
h3 |
| W1 | 0.2-0.7 | W101 | 0.2-0.7 | 6 | 4 | 24 | 7 |
| W2 | 0.5-2 | W102 | 0.5-1.5 | 9 | 6 | 24 | 12 |
| W3 | 1.5-3 | W103 | 0.9-2.5 | 12 | 8 | 30 | 15 |
| W4 | 3-5 | W104 | 2.5-4 | 15 | 10 | 42 | 20 |
| W5 | 5-7 | W105 | 4-6 | 20 | 14 | 55 | 24 |
| W6 | 7-9 | W106 | 6-8 | 25 | 18 | 60 | 28 |
| W7 | 9-12 | W107 | 8-10 | 30 | 22 | 70 | 35 |
| W8 | 12-15 | W108 | 10-13 | 35 | 25 | 85 | 40 |
| W9 | 15-18 | W109 | 13-16 | 40 | 27 | 100 | 45 |
| W10 | 18-24 | W110 | 16-20 | 50 | 30 | 125 | 50 |
| W11 | 24-30 | W111 | 20-26 | 60 | 35 | 145 | 60 |
| W12 | 30-35 | W112 | 26-32 | 70 | 40 | 175 | 70 |
| W13 | 35-44 | W113 | 32-38 | 80 | 45 | 195 | 80 |
| W14 | 44-52 | W114 | 38-46 | 90 | 50 | 215 | 90 |
| W15 | 52-62 | W115 | 46-54 | 100 | 50 | 230 | 90 |
| W16 | 62-72 | W116 | 54-62 | 110 | 50 | 230 | 90 |
| W17 | 72-80 | W117 | 62-70 | 120 | 55 | 250 | 100 |
| W18 | 80-90 | W118 | 70-78 | 130 | 55 | 275 | 100 |
| W19 | 90-100 | W119 | 78-86 | 140 | 60 | 295 | 110 |
| W20 | 100-110 | W120 | 86-94 | 150 | 60 | 315 | 110 |
Related products

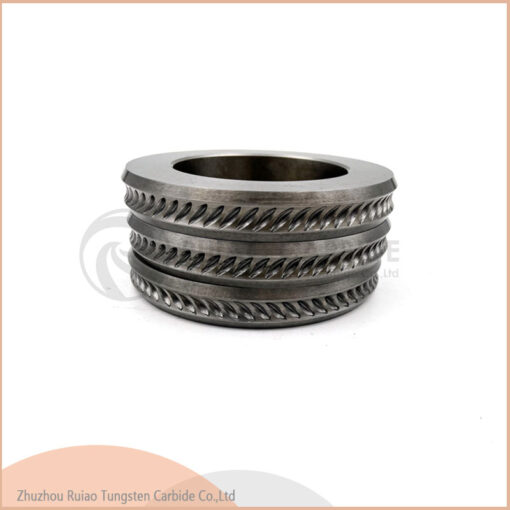

Tungsten Carbide Mold

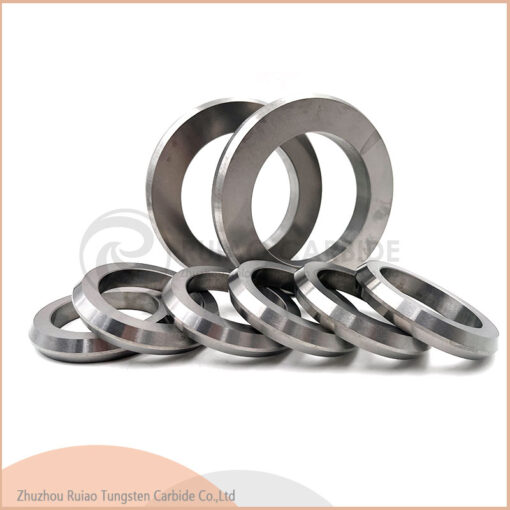

Tungsten Carbide Mold
